Change IPC Firmware Lincoln MKZ to Mondeo MK5/Fusion

[adyboss]

Thank you for trying!
BTW: you need the third one... Calibration file

[adyboss]

Sorry, I wanted to say Bootloader. 3 files in total

[DiscoverySL]

Hi there.

Does anyone no where I can find the newest calibration file for my car? Maybe using VIN number?

I tried that link:https://www.fordtechservice.dealerconne ... roduct=IDS
but looks like it does not have any IPC calibration file for my FORD FUSION HYBRID sold in Brazil.

It´s Strategy is: GS7T-14C026-LC
Calibration: GS7T-14C088-LC

[dragunov]

I installed the new software for my IPC by using Update Wizard, but it seems it installed an older version of the software, no small needles and tripcomputer is not in four squares.

I have the temperature on my IPC and the digital speedometer in middle screen...

[t-k]

You installed AJD/BJD, you need to install AJE/BJE.

[dragunov]

Just followed the Update Wizard as they said on forum.

Did u manually load the files in vbf loader?

[t-k]

you must change the uuw file
https://www.drive2.ru/b/466073909117059793/

[dragunov]

Thanks!

Last question, why is this changed: from <d DID="F18C" Desc="ECU Serial Number" Data="VBJB000428"/> to <d DID="F18C" Desc="ECU Serial Number" Data="VBJB002733"/> ?

Thanks!

[mikele]

Thanks!

Last question, why is this changed: from <d DID="F18C" Desc="ECU Serial Number" Data="VBJB000428"/> to <d DID="F18C" Desc="ECU Serial Number" Data="VBJB002733"/> ?

Thanks!

This parameter is not so important, you can leave it. There is no affect on update.

[dragunov]

Thanks!

I only wonder why they changed this

[sam275]

Hello who can help me? I need this files:
Existing Explorer Fileset:
Bootloader: EJ7T-14C025-AA
VMES: HB5T-14C026-EA
VMES #2: HB5T-14C026-FA
ECD: HB5T-14C088-EA
ECD #2: HB5T-14C088-FA
Thanks!!!

[DanMc85]

Newer Fusion/Mondeo CD391 Firmware was added to Ford's file downloads:

JS7T (2018) series Mondeo firmware.
Visually it only looks like the BRAKE icon changed, not sure what else is changed behind the scenes for as-built (direct config) or features.
I believe this one will have compatibility issues on older Fusion/Mondeo vehicles unless 2018 BCM firmware is used. (Such as issues with illumination and left roll out menu screen freezing up.)
You are welcome to test on a 2016/2017 and share your results after testing for a couple days. You can always flash the previous firmware back.

Download Link: http://www.ucdsys.ru/calibration/

More Info: http://www.2gfusions.net/showthread.php ... #pid102094

SBL (Bootloader): EJ7T-14C025-AA

2018 MY: (This JS7T firmware and GS7T firmware have thin blue needles for gauges)
JS7T-14C026-AJA
JS7T-14C026-BJA
JS7T-14C088-AJA
JS7T-14C088-BJA
- Firmware Build Date: March 30, 2017




Previous (Latest Model Year) Firmwares:

2016/2017 MY:
GS7T-14C026-AJE
GS7T-14C026-BJE
GS7T-14C088-AJE
GS7T-14C088-BJE
- Firmware Build Date: October 21, 2016

2015 MY: (This FS7T firmware has the thick blue needles for gauges)
FS7T-14C026-AJG
FS7T-14C026-BJG
FS7T-14C088-AJG
FS7T-14C088-BJG
- Firmware Build Date: January 6, 2016

2013/2014 MY : (This firmware has thick blue needles and optional digital speedometer on right round screen area instead of middle)
DS7T-14C026-BJR
DS7T-14C026-AJN
DS7T-14C088-BJN
DS7T-14C088-AJN
- Firmware Build Date: May 30, 2014 (No Longer Updated) - This older build will only flash to a 2015 Lincoln MKZ/Mondeo Cluster (2013/2014 MKZ IPC not supported - different hardware - smaller 512KB Flash Chip vs 1MB).


OPTIONAL (For GS7T Firmware Only):
Lincoln MKZ Graphics Pack instead of Mondeo Graphics (aka White Needles and other various colors changed):
Instead of flashing the GS7T-14C088-BJE file, flash HP5T-14C088-DF instead in slot 4.

[DeadlySin]

Hello,

I have a ford Mondeo 2017 with this IPC:
F110 — On-line Diagnostic Database Reference Number : DS-EM2T-1A292-JAD
F111 — ECU Core Assembly Number : DS7T-14F094-AJA
F113 — ECU Delivery Assembly Number : JS7T-10849-BJA
F120 — ECU Software #2 Part Number : JS7T-14C026-BJA
F124 — ECU Calibration Data #1 Number : JS7T-14C088-AJA
F125 — ECU Calibration Data #2 Number : JS7T-14C088-BJA
F162 — Software Download Specification Version :
F163 — Diagnostic Specification Version : 0x03
F188 — Vehicle Manufacturer ECU Software Number : JS7T-14C026-AJA
F18C — ECU Serial Number : --------------------

I tried to flash Lincoln HP5T-14C088-DF to get white arrows, and everything works fine, except one thing - I do not have a parking brake sing on the IPC.
May be there is a 2018 Lincoln cluster update to make it works?

[DanMc85]

Hello,

I tried to flash Lincoln HP5T-14C088-DF to get white arrows, and everything works fine, except one thing - I do not have a parking brake sing on the IPC.
May be there is a 2018 Lincoln cluster update to make it works?

Yes, flash this 2018 MKZ graphics file: JP5T-14C088-DB

[PlatinumOwner]

Thanks everyone!

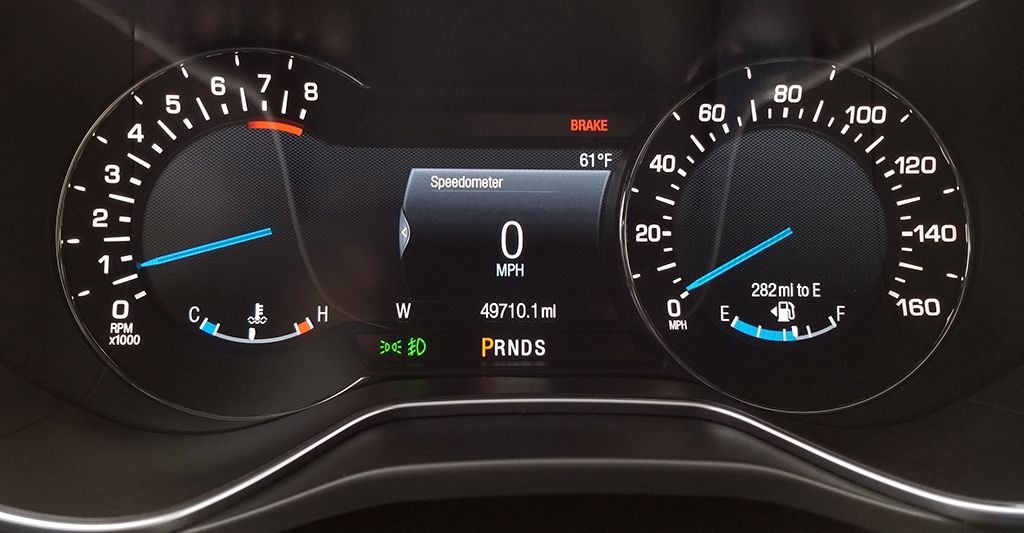

Using the VBF loader & selecting HS3 I was able to get the 2018 Explorer Platinum IPC firmware loaded on my 2016 cluster(GB5T-10849-EH). The 2016 didn't even have the center speedometer! I prefer the new look of the thinner blue needles too.

No issues yet with the 2018MY software, I am also using this with a SYNC 3 Nav unit I installed myself.

Here are the files for the Explorer Platinum:

2018 MY:
EJ7T-14C025-AA
JB5T-14C026-EA
JB5T-14C026-FA
JB5T-14C088-EA
JB5T-14C088-FA
- Firmware Build Date: October 13, 2017
